Equipment to keep your project safe

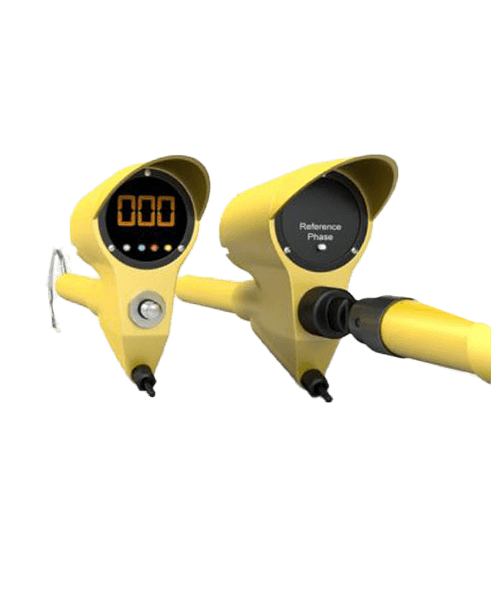

Bierer PD800W
  • The Meter Probe features a Large Easy-to-Read Digital Display with Backlight
  • Both Probes are Impact and Water Resistant, Designed to withstand Wear
  • Requires No Interconnecting Cable between Probes
  • Requires No Extension Resistors
  • Both Probes are Completely Shielded to Minimize Stray Field Interference
  • Cordless Phasing Tool Direct Contact from 120V - 69kV, Distribution Systems
  • Cordless Phasing Tool(Degree Position Only) Non-Contact from 69kV - 800kV, Transmission/Substation Systems
  • Phase URD Systems
  • Phase Capacitive Test Points on URD Elbows
Data Sheet
Hastings 6722 Wireless Phasing Meter
  • The Phase-Tell III is a battery powered, two-piece wireless phasing tool
  • communicate up to three hundred feet apart
  • Both units are identical, no need to identify transmitter or receiver
  • Voltage range from URD test points to 500KV
  • Both units confirm the same phase readings
  • Rugged extruded aluminum enclosure
  • Includes carrying case and instructions
  • URD bushing adapters and case available
Data Sheet
Hastings 6702 Wireless Phasing Meter
  • Instrument for measuring overhead and underground voltages.
  • Three modes of operation AC, Hi-Pot, and DC.
  • 0-40KV meter up to 240KV with resistors.
  • Automatically adjust voltage display to match resistors if used.
  • Hi-Pot mode for testing URD Cable.
  • In Hi-Pot mode bar graph marks the peak voltage while cable is being charged.
  • 0-4KV DC
  • Large easy to read digital meter and analog bar graph.
  • Meter reads to nearest 100 volts
Data Sheet
HDE TAG 5000
  • Range of operation is more than 33' through the air - over 1,000' along overhead conductors
  • No connecting cord between transmitter and receiver
  • Built-in universal splines for hotstick attachment
  • Rugged and lightweight design
  • Both transmitter and receiver powered by 9V lithium or alkaline battery
  • Audible and visual indications
  • All-Check self-test feature for verifying proper operation prior to use
  • Phase through walls and metal enclosures
  • Phase conductors on system voltages up to 230kV (phase-to-phase)
  • Can be used on 50Hz and 60Hz systems
Data Sheet
  • Range 0-25
  • Length with OH Probe 18"
  • Capacitive test point mode
  • Hotstick required
  • RMS voltage measurements up to 80kV AC/DC
  • Large auto-ranging LCD (models DVM-I through DVM-V)
  • Back lit display for low light conditions
  • Coiled connecting cord is standard
  • Peak hold and track modes (models DVM-I through DVM-IV)
  • Universal splines for standard hot stick attachment
Data Sheet
Pfisterer Ground Set Cluster
  • High resolution of 1 mΩ, ideal for large earth (ground) systems
  • Versatile tests modes
  • High accuracy for earth (ground) electrode grid and soil resistivity tests
  • Automatic test frequency selection, with filters and high current features
  • Diagnostic trace display
Data Sheet
