Primary Injection

Test Sets for High Current Testing of Circuit Breakers

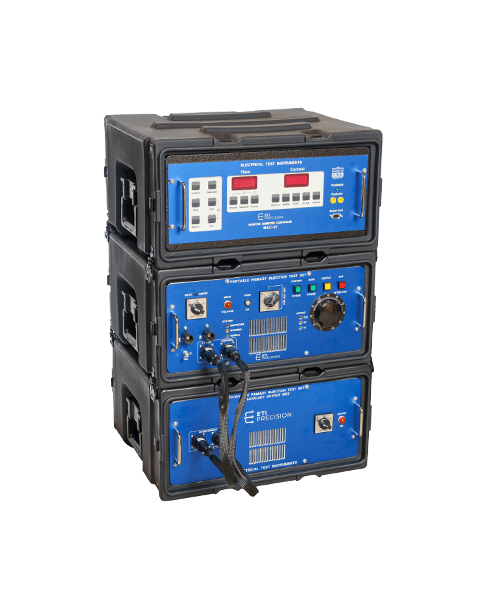

ETI PI-1600B
  • Option A Input: 120, 208-240 VAC +/- 10% (Switch Selectable)
  • Option B Input: 208, 240 and 277 VAC +/- 10% (Switch Selectable)• 9.8KVA Continuous (Test up to 1600 Amp Circuit Breakers)
  • Digital Memory Ammeter Controller MAC-21
  • Rugged plastic and aluminum enclosure with removable protective lids
  • Selectable output connections for all types impedance loads• Variable pulse times for convenient preset output current
Data Sheet
Omicron COMPANO 100
  • Accurate output of desired value
  • Run complex predefined sequences and ramps
  • Polarity check signal generation for quick setup of wiring tests
  • Runs without main power supply for several hours
  • Portable due to light weight
Data Sheet
Omicron CP CB2
  • Current amplifier for the CPC 100
  • Current output can be increased to 2000A using the CP CB2
  • CPCB2 is connected to the busbars via a short, high-current cable and to the CPC100 via the long control cable
Data Sheet
Omicron CP TD-1
  •  Measures the capacitance and dissipation factor (power factor) with laboratory precision
  •  Used in combination with the Omicron CPC 100 Multi-Functional Primary Test System
  • Allows the insulation condition of transformers, generators, and other parts of high-voltage systems to be tested
Data Sheet
SMC Raptor
  • Dynamic output stabilization
  • Multi-functionality
  • Expandability
  • Convenient and efficient pass-through technique
  • Relay testing
  • Current Transformer testing
    Recloser and Sectionalizes
  • Switchgear Testing
  • Heat runs
  • Ground Grid testing
Data Sheet
