Power Factor

Transformer Test Sets

DOBLE M4100

Power Factor And Tan-Delta Testing
HV Turns Ratio Testing To Detect Shorted Turns Or Winding Damage
Leakage Reactance / Short Circuit Impedance Testing
Single Phase Excitation Current Testing
Capacitor Bank Testing

DOBLE M4110

Leakage Reactance Module Used In Conjunction With The Doble M4000/4100 To Help Indicate Transformer Winding Deformation
Can Measure And Calculate Both Single Phase And Three-Phase Equivalent Leakage Reactance And Loss For Transformers
Supports Both IEEE-62 And IEEE C57.152 Test Standards

MEGGER CB100

Lightweight and portable
100 Hertz test frequency■28 volt test voltage
Test mode selector switch
Direct reading of capacitance and dissipation factor
Perform tests in UST and GST configuration

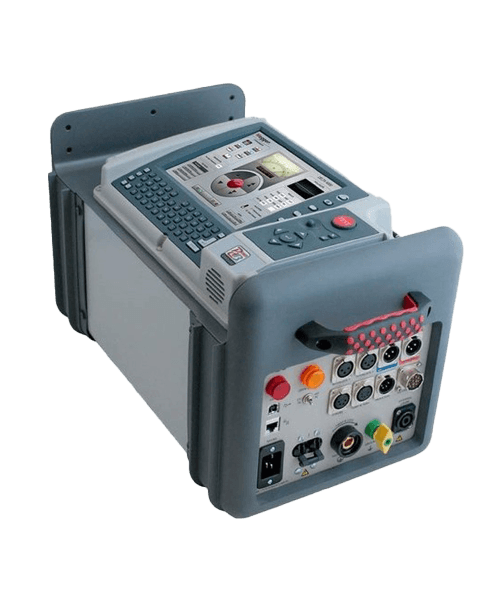

MEGGER DELTA 4000

Power factor test set
Automatic and manual operation
Accurate and repeatable measurement results with high noise suppression
Lightweight, rugged two-piece design
New built-in intelligent temperature correction (patent pending)
New automatic voltage dependence detection

OMICRON CP TD-1 (CPC 100 ADD-ON)

Measures The Capacitance And Dissipation Factor (Power Factor) With Laboratory Precision
Used In Combination With The Omicron CPC 100 Multi-Functional Primary Test System
Allows The Insulation Condition Of Transformers, Generators, And Other Parts Of High-Voltage Systems To Be Tested

OMICRON CP TD12 (CPC 100 ADD-ON)

Wider frequency range for more sensitivity (15 Hz – 400 Hz)
Testing at variable frequencies for better condition diagnosis
Excellent suppression of mains frequency interference fields
High-voltage source for partial discharge measurements up to 15 kV
Portable component and simple to transport using a trolley

OMICRON CPC100

Performs electrical tests on power transformers, current transformers, voltage transformers and rotating machines
Multifunction unit saves cost for transportation and cuts down testing time
TD12 module enables power/dissipation factor measurements
Can operate via the integrated front panel or by using the Primary Test Manager (PTM) software from a laptop

RAYTECH CAPO 12

Battery-operated, making it convenient to use
Very light and portable – complete system weighs less than 22 kg (49 lbs.)
Built-in standard capacitor
Power factor cos / dissipation factor tan δ reading
Test frequency 10 Hz to 400 Hz
Internal storage for over 10,000 test results
External safety switch and safety ground detect for safe operation
Temperature channel with user selectable correction

RAYTECH CAPO 2.5

Battery-operated, making it convenient to use
Very light and portable – complete system weighs less than 22 kg (49 lbs.)
Built-in standard capacitor
Power factor cos / dissipation factor tan δ reading
Test frequency 10 Hz to 400 Hz
Internal storage for over 10,000 test results
External safety switch and safety ground detect for safe operation
Temperature channel with user selectable correction
