HIPOT / VLF

AC, DC and VLF Hipots for Cable Testing

HIPOTRONICS 880PL -DC
  • DC hipot test up to 80kV, 10mA
  • Measures output voltage, leakage current, insulation resistance (IR), and polarization index (PI)
  • Adjustable test parameters such as target voltage, maximum leakage, ramp rate, and dwell time
  • Full-wave voltage multiplier
Data Sheet
HV DIAGNOSTICS HVA28TD
  • VLF 20kVrms/28kV Peak output
  • DC ±28kV
  • Sine/Square/ DC outputs
  • Cable Jacket / Sheath testing mode
  • TD measurement mode
  • Vacuum bottle testing mode
  • Fault Conditioning/Trip
  • Load independent output waveform
Data Sheet
HV DIAGNOSTICS HVA34
  • Perform tests fully automatically
  • Oscilloscope Display of Output Waveform
  • Insulation Resistance & Cap. Measurement
  • RMS Metering of Current and Voltage
  • Output Frequency optimization
  • Unlimited duty cycle
Data Sheet
HV DIAGNOSTICS HVA45TD
  • Insulation resistance & capacitance measurement
  • Output frequency optimization
  • Auto & manual test programmable sequences
  • Unlimited duty cycle
  • Flashover voltage detection
  • Power supply immunity and independence
  • Automatic TD evaluation
Data Sheet
HV DIAGNOSTICS HVA60
  • Perform tests fully automatically
  • Real time oscilloscope display
  • Insulation Resistance & Cap. measurement
  • RMS Metering of Current and Voltage
  • Output Frequency optimization
  • Power supply immunity and independence
Data Sheet
HV DIAGNOSTICS HVA90
  • Test up to 10µF (100,000ft/30kms)
  • Output Frequency optimization
  • Power supply immunity and independence
  • Peak voltage of 90kV
Data Sheet

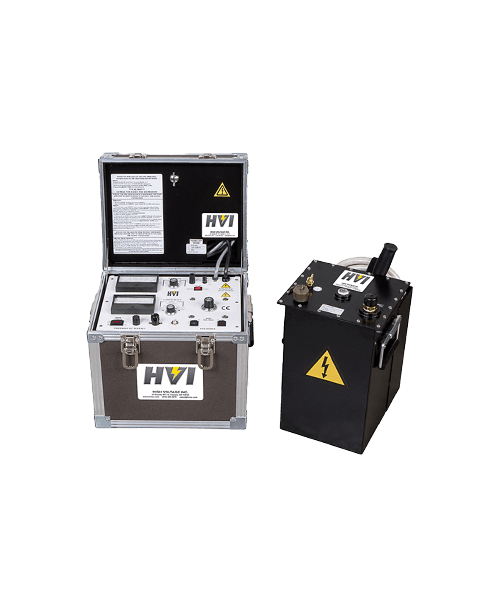

High Voltage Inc (HVI) PTS-100
  • 20 foot (6 meter) shielded output cable, ground and return leads
  • 5 range current/megohmmeter for accurate leakage current
  • Megohm readings at any output voltage up to 10 teraohms
  • Full-wave bridge rectifier
  • Internal HV Shorting Solenoid with discharge resistors
  • Automatic transit protected meters with Anti-static glass face
Data Sheet
High Voltage Inc (HVI) PFT-1003 CM
  • Convenient two-piece field portable design
  • Secondary connected 2 Range Voltmeter: 0 – 50 / 100 kV AC
  • 3 Range Current Meter: 0 – 1 mA AC with x1, x10, and x100 multipliers
  • Fixed overload set to 120% of variable transformer rated output current
Data Sheet
High Voltage Inc (HVI) PFT-503 CM
  • Convenient one-piece field portable design
  • Secondary connected 2 Range Voltmeter: 0 - 25 / 50 kV AC
  • 3 Range Current Meter: 0 – 1 mA AC with x1, x10, and x100 multipliers
  • Fixed overload set to 120% of variable transformer rated output current
  • Guard/Ground circuit for accurate leakage current measurement
  • 20 ft shielded output and return cables
Data Sheet
High Voltage Inc (HVI) PTS-37.5
  • Continuously adjustable output voltage
  • Zero start and external interlock provision
  • Dual-range voltmeter
  • Five-range current meter 0-1.0 μA DC with x1, x10, x100, x1k, and x10k multipliers.
  • Five-range megohmmeter 100-1 MΩ with x0.1, x1, x10, x100, and x1k multipliers.
  • Ferro-resonant line regulator for output voltage stabilizatio
  • Guard/ground return circuit
  • Transit protected meter
Data Sheet
High Voltage Inc (HVI) PTS-75
  • Continuously adjustable output voltage
  • Fixed overload, factory set to 120% of rated output current
  • Zero start and external interlock provision
  • Dual-range voltmeter
Data Sheet
High Voltage Inc (HVI) PTS-80
  • Fully automatic, continuous operation system
  • Battery-operated
  • Reverse Polarity Test
  • Continuity Test
  • Test current up to 1A for CT testing
    Pass / Fail Function
  • Save up to 16 Transformers for comparison
Data Sheet
Megger 220124
  • Lightweight air-insulated high-voltage DC test set
  • Maximum safety for operator according to IEC61010
  • Clear control panel layout
  • Intuitive and easy-to-follow test sequence
  • Quick sheet with set-up and operating instructions in instrument lid
  • Digital voltage and current metering
  • Robust mechanical enclosure design for control unit and high voltage module
Data Sheet
VITREK V61 AC/DC HIPOT / ELECTRICAL SAFETY ANALYZER
  • Fully Automated Testing at the Touch of a Button or via RS232& PLC Control
  • 3 Models to choose from – Select the functions you need to get the job done
  • Available QuickTest™ Test Automation Software for your PC
  • AC Hipot to 5kV with 20mASourcing
  • DC Hipot to 6kV with 7.5mASourcing
  • Ground Continuity to 0.001Ω●Built-in 160 Step Test Memory
  • Selectable Arc Detection
Data Sheet
